Hi,
the power value is not displayed correctly in Phoscon App.
42 A current ? what is on the device ?
Effectively there is a problem If I try to compute the power it’s more 5 Kw than 5 W.
232 * 42 = 9.7KW (without power factor)
The code use
{
"name": "state/power",
"refresh.interval": 360,
"read": {
"at": "0x050b",
"cl": "0x0b04",
"ep": 1,
"fn": "zcl:attr"
},
"parse": {
"at": "0x050b",
"cl": "0x0b04",
"ep": 1,
"eval": "Item.val = Attr.val / 100;"
}
},
ATM it’s / 100, but I think it need to be * 1000.

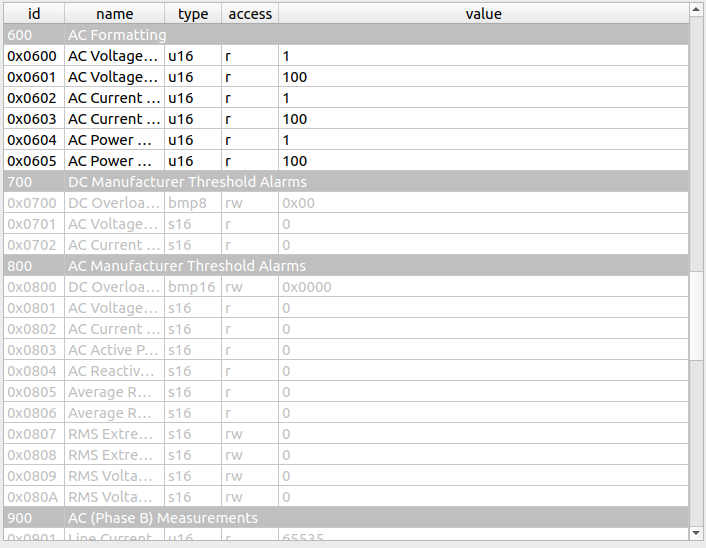

Sorry @Smanar, but current is output in mA and you’re right, it could be due to the divider. @Olli You could check what value is represented by 0x0605.
Lol, ha yes right, it’s in mA, more logic ^^.
So just need to remove the “/100”
If It have worked, can you make a PR or ask for someone make it. (to have the change official)

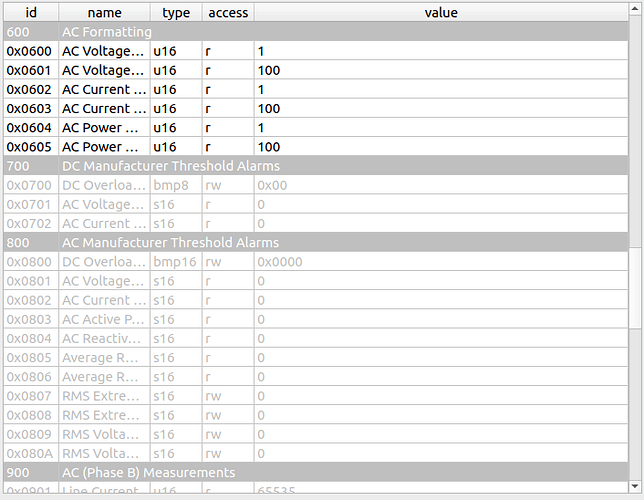

I’m not in favor of simply removing “/100” if we don’t know what’s correct, since this screenshot was taken during the DDF creation process.
If it’s still correct, it may be necessary to integrate state/power_divisor. To find out, it’s necessary to connect different devices to the Shelly and then check the power divider value. If it changes (1/10/100), then state/power_divisor is needed.
For me it’s fine according to current value.
And it’s personnal but I prefer hardcoded convertion, easier, less stuff to use, and sometime the firwmare return bad values for multiplicator/divisor.
Right, I just wanted to be sure. I’ve now checked the Shelly DDFs and the values are being passed exactly the same way with the Power Strip 4 Gen4. I have corrected it for the Shelly 1PM (Mini) Gen4.
I think it‘s okay.
0x0605 has value 1
