Binary Value Cluster Attributes not supported?

frank · September 9, 2021, 10:35am

Hi Community!
I am trying to implement the Binary Value Cluster on my sensor device. The Device also has a buzzer, which will sound when a curtain measurement level is reached. Via the before mentioned Binary Value cluster im planing to set a system variable in order to disable and (re)enable the buzzer.

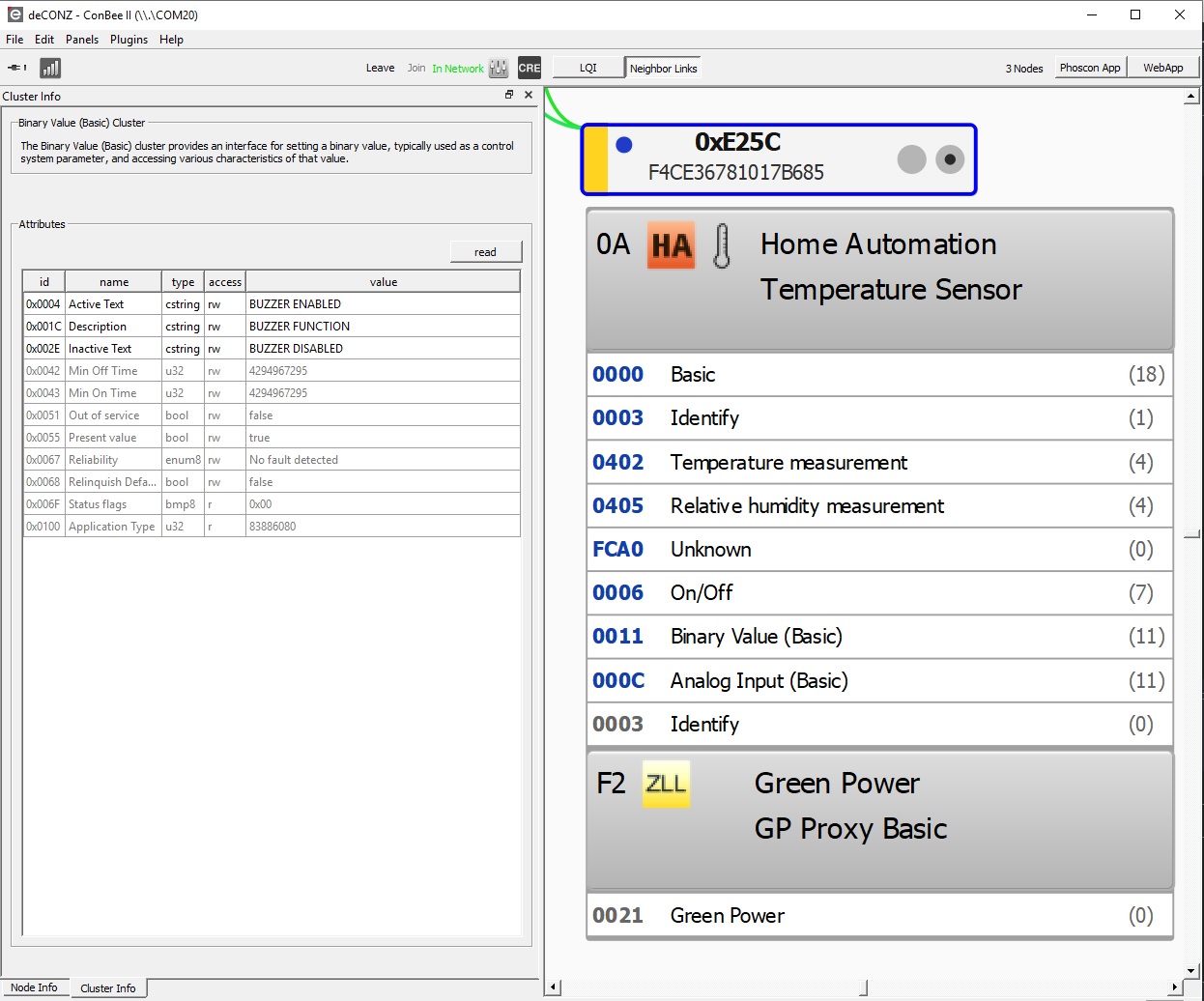

So far I implemented the Cluster with all mandatory Attributes plus a few extra, all part of ZCL specs. In deCONZ only three attributes are shown properly, the rest is grey, means unsupported.

Have a look:

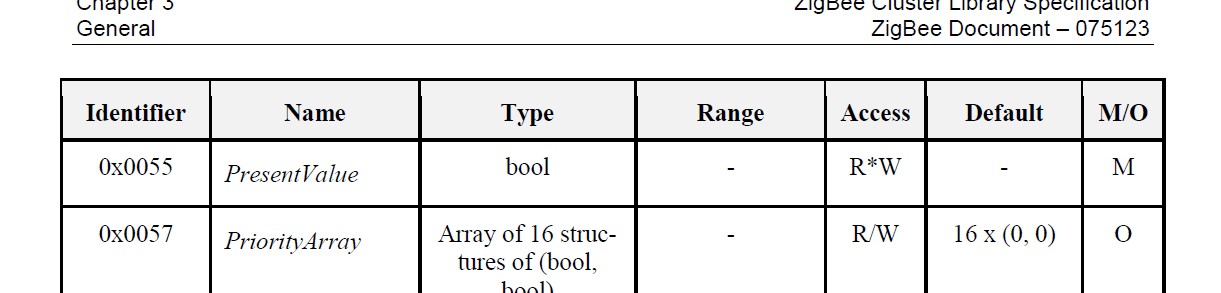

I double checked my attribute`s IDs and accessibility options with those of the Zigbee ZCL specs aswell as those in the general.xml file in the deCONZ/zcl subfolder.
What am I missing, do you have any ideas?

Greetings, frank

Mimiix · September 9, 2021, 10:54am

Are you sure the device is whitelisted in deCONZ?

frank · September 9, 2021, 11:04am

Ih Mimiix,
thanks for your reply!

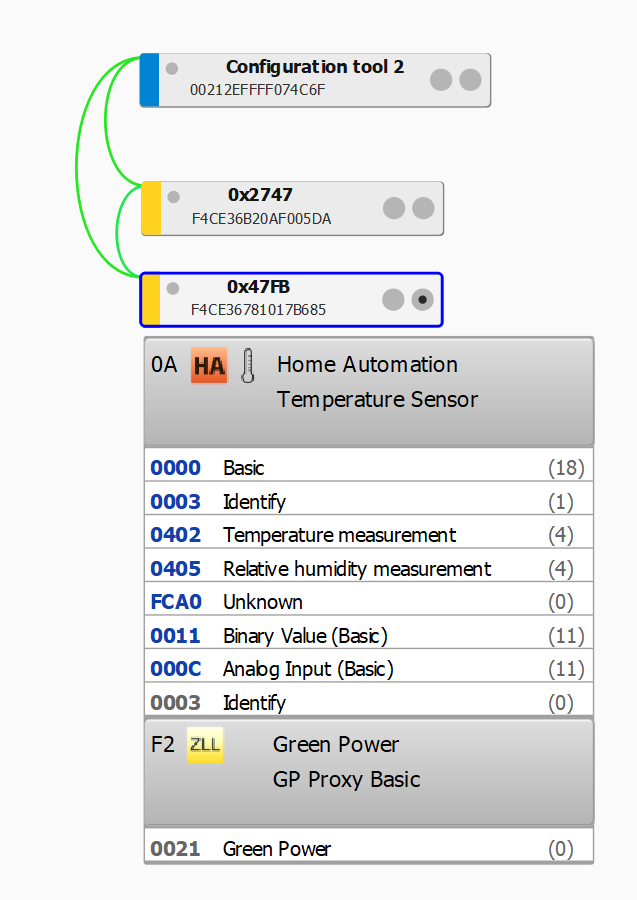

No, Im creating this device myself. As you could see in the picture i implemented the temperature, the humidity and the analog input clusters aswell. In these clusters all attributes, that i implemented are supported by deCONZ, which means Im able to read them repeatedly and write them (if allowed).

What i forgot to mention is, that even the greyed out attributes of the binary value cluster are read at least once. I checked this by changing their initial values.
Btw: where can i find this Whitelist, Id like to have look on it.

frank

Mimiix · September 9, 2021, 11:04am

A Dev needs to answer that. So i can’t say.

@smanar perhaps?

frank · September 9, 2021, 1:14pm

Here is the ZCL Debug output when reading the attributes the first time:

14:59:45:160 ZCL read cluster: 0x0011, attribute: 0x0004
14:59:45:160 ZCL cmd-req nwk: 0x7F4F, profile: 0x0104, cluster: 0x0011 cmd: 0x00
14:59:45:186 ZCL read cluster: 0x0011, attribute: 0x001C
14:59:45:186 ZCL cmd-req nwk: 0x7F4F, profile: 0x0104, cluster: 0x0011 cmd: 0x00
14:59:45:374 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0004, status=0x00, type=0x42
14:59:45:395 ZCL read cluster: 0x0011, attribute: 0x002E
14:59:45:395 ZCL cmd-req nwk: 0x7F4F, profile: 0x0104, cluster: 0x0011 cmd: 0x00
14:59:45:415 ZCL got data for node=0x7F4F, cl=0x0011, at=0x001C, status=0x00, type=0x42
14:59:45:428 ZCL read cluster: 0x0011, attribute: 0x0042
14:59:45:428 ZCL read cluster: 0x0011, attribute: 0x0043
14:59:45:429 ZCL read cluster: 0x0011, attribute: 0x0051
14:59:45:429 ZCL read cluster: 0x0011, attribute: 0x0055
14:59:45:430 ZCL cmd-req nwk: 0x7F4F, profile: 0x0104, cluster: 0x0011 cmd: 0x00
14:59:45:436 ZCL got data for node=0x7F4F, cl=0x0011, at=0x002E, status=0x00, type=0x42
14:59:45:456 ZCL read cluster: 0x0011, attribute: 0x0067
14:59:45:457 ZCL read cluster: 0x0011, attribute: 0x0068
14:59:45:457 ZCL read cluster: 0x0011, attribute: 0x006F
14:59:45:457 ZCL read cluster: 0x0011, attribute: 0x0100
14:59:45:458 ZCL cmd-req nwk: 0x7F4F, profile: 0x0104, cluster: 0x0011 cmd: 0x00
14:59:45:478 ZCL got unsupported status: 0x86 for mandatory attribute
14:59:45:479 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0042, status=0x86, type=0x00
14:59:45:479 ZCL got unsupported status: 0x86 for mandatory attribute
14:59:45:479 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0043, status=0x86, type=0x00
    **14:59:45:480 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0051, status=0x00, type=0x10**

** 14:59:45:480 ZCL got unsupported status: 0x86 for mandatory attribute**
** 14:59:45:480 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0051, status=0x86, type=0x10**
14:59:45:481 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0055, status=0x00, type=0x10
14:59:45:481 ZCL got unsupported status: 0x86 for mandatory attribute
14:59:45:482 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0055, status=0x86, type=0x10
14:59:45:500 ZCL got unsupported status: 0x86 for mandatory attribute
14:59:45:500 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0067, status=0x86, type=0x00
14:59:45:501 ZCL got unsupported status: 0x86 for mandatory attribute
14:59:45:501 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0068, status=0x86, type=0x00
14:59:45:502 ZCL got data for node=0x7F4F, cl=0x0011, at=0x006F, status=0x00, type=0x18
14:59:45:502 ZCL got unsupported status: 0x86 for mandatory attribute
14:59:45:503 ZCL got data for node=0x7F4F, cl=0x0011, at=0x006F, status=0x86, type=0x18
14:59:45:503 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0100, status=0x00, type=0x23
14:59:45:503 ZCL got unsupported status: 0x86 for mandatory attribute
14:59:45:504 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0100, status=0x86, type=0x23

As you can see in the lines I marked deCONZ first receives the attribute with status=0x00 (succcess, I guess) but also receives the sama attribute with status=0x86 (which should mean it`s unsupported I think).

Any Ideas on that one?

frank · September 9, 2021, 1:19pm

Sorry, my last post was not formated as intended. The mentioned lines are:

14:59:45:480 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0051, status=0x00, type=0x10 14:59:45:480 ZCL got unsupported status: 0x86 for mandatory attribute 14:59:45:480 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0051, status=0x86, type=0x10

Smanar · September 9, 2021, 5:52pm

Can be just this device not support this attribute, no ? 0x86 mean “unsupported_attribute”

frank · September 23, 2021, 9:03am

Hi Smanar,
since this device is under development I assume that the cluster has not been implemented correctly either by me (or by dresden elektronik).
How are the following lines of ZCL debug output in deconz generated:

14:59:45:481 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0055, status=0x00, type=0x10
14:59:45:481 ZCL got unsupported status: 0x86 for mandatory attribute
14:59:45:482 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0055, status=0x86, type=0x10

Do I have to change something in rest-plugin? Might there be something else I did not yet consider when implementing the cluster?

Here are my attributes´ declarations:

#define ZB_SET_ATTR_DESCR_WITH_ZB_ZCL_ATTR_BINARY_VALUE_ACTIVE_TEXT_ID(data_ptr)
{
ZB_ZCL_ATTR_BINARY_VALUE_ACTIVE_TEXT_ID,
ZB_ZCL_ATTR_TYPE_CHAR_STRING,
ZB_ZCL_ATTR_ACCESS_READ_WRITE,
(zb_voidp_t) data_ptr
}
/** Description, see ZCL specification 3.14.11.4. /
#define ZB_SET_ATTR_DESCR_WITH_ZB_ZCL_ATTR_BINARY_VALUE_DESCRIPTION_ID(data_ptr)
{
ZB_ZCL_ATTR_BINARY_VALUE_DESCRIPTION_ID,
ZB_ZCL_ATTR_TYPE_CHAR_STRING,
ZB_ZCL_ATTR_ACCESS_READ_WRITE,
(zb_voidp_t) data_ptr
}
/* InactiveText, see ZCL specification 3.14.11.13. /
#define ZB_SET_ATTR_DESCR_WITH_ZB_ZCL_ATTR_BINARY_VALUE_INACTIVE_TEXT_ID(data_ptr)
{
ZB_ZCL_ATTR_BINARY_VALUE_INACTIVE_TEXT_ID,
ZB_ZCL_ATTR_TYPE_CHAR_STRING,
ZB_ZCL_ATTR_ACCESS_READ_WRITE,
(zb_voidp_t) data_ptr
}
/* OutOfService, see ZCL specification 3.14.11.1. */
#define ZB_SET_ATTR_DESCR_WITH_ZB_ZCL_ATTR_BINARY_VALUE_OUT_OF_SERVICE_ID(data_ptr)
{
ZB_ZCL_ATTR_BINARY_VALUE_OUT_OF_SERVICE_ID,
ZB_ZCL_ATTR_TYPE_BOOL,
ZB_ZCL_ATTR_ACCESS_READ_WRITE,
(zb_voidp_t) data_ptr
}

/** PresentValue, see ZCL specification 3.14.11.2. /
#define ZB_SET_ATTR_DESCR_WITH_ZB_ZCL_ATTR_BINARY_VALUE_PRESENT_VALUE_ID(data_ptr)
{
ZB_ZCL_ATTR_BINARY_VALUE_PRESENT_VALUE_ID,
ZB_ZCL_ATTR_TYPE_BOOL,
ZB_ZCL_ATTR_ACCESS_READ_WRITE | ZB_ZCL_ATTR_ACCESS_REPORTING,
(zb_voidp_t) data_ptr
}
/* StatusFlags, see ZCL specification 3.14.11.3. /
#define ZB_SET_ATTR_DESCR_WITH_ZB_ZCL_ATTR_BINARY_VALUE_STATUS_FLAGS_ID(data_ptr)
{
ZB_ZCL_ATTR_BINARY_VALUE_STATUS_FLAGS_ID,
ZB_ZCL_ATTR_TYPE_8BITMAP,
ZB_ZCL_ATTR_ACCESS_READ_ONLY | ZB_ZCL_ATTR_ACCESS_REPORTING,
(zb_voidp_t) data_ptr
}
/* ApplicationType, see ZCL specification 3.14.11.19. */
#define ZB_SET_ATTR_DESCR_WITH_ZB_ZCL_ATTR_BINARY_VALUE_APPLICATION_TYPE_ID(data_ptr)
{
ZB_ZCL_ATTR_BINARY_VALUE_APPLICATION_TYPE_ID,
ZB_ZCL_ATTR_TYPE_U32,
ZB_ZCL_ATTR_ACCESS_READ_ONLY,
(zb_voidp_t) data_ptr
}

Thanks for your help in advance.

Smanar · September 23, 2021, 5:12pm

For me you are fine

14:59:45:481 ZCL got data for node=0x7F4F, cl=0x0011, at=0x0055, status=0x00, type=0x10
14:59:45:481 ZCL got unsupported status: 0x86 for mandatory attribute

the type 0x10 is the bool

I don’t see something bad, can be just the device that don’t support this attribute.

frank · September 30, 2021, 12:27pm

I was able to test this behavior with another Conbee2 stick of a colleague. Unfortunatly the results were the same. Only three Attributes of the BinaryValue cluster appear as being supported in deconz.
Considering deCONZ, I am using its latest version for windows: v2.12.6
The Conbee2 firmware version is: 26580700

Further ideas are still appreciated.
Greetings, frank

Smanar · September 30, 2021, 12:43pm

But can be normal.
It can can come from the device, are you sure it is able to use thoses attribute ?

frank · September 30, 2021, 12:51pm

Sure, I am developing this device.
But this is the thing: I am validating my implementation via its effects on the deCONZ GUI.

frank · September 30, 2021, 1:42pm

By the way, is there a guide how to integrate a custom cluster with all its attributes and stuff so that deconz can deal with it?

Smanar · September 30, 2021, 7:49pm

Ha ok, so it’s not the same thing.
You have something to sniff the zigbee traffic (an external way at the device and deconz) ? The code part in the firmware that use thoses attributes ?

By the way, is there a guide how to integrate a custom cluster with all its attributes and stuff so that deconz can deal with it?

You mean make a DIY device with custom cluster ?

Edit:
Now I remember an issue on Doorlock, it’s a long story but to resume, how are you asking attributes ?
Avoid the “read” button, that ask for all attributes, but try a not working attribute direclty, alone (at the start, all attribute are “askable”, just before they was disabled)
Doorlock device are end-device, less robust than router, so I don’t think you have the same issue but it s something easy to try.

frank · October 7, 2021, 9:22am

Hell yeah, this did the trick! But Im curious what is the reason for it, since I have set it up as mains powered router device…

Exactly, I did not find something like this in this forum or the github pages.

Smanar · October 7, 2021, 2:11pm

You have set it as mains powered, but it s a real one ?
And some battery powered device don’t have this problem, I have see it only on doorlock devices and battery siren for the moment, but other need to be awaked.

As DIY project you have this one too https://github.com/diyruz/flower

frank · October 14, 2021, 2:11pm

I checked all declarations and function calls related to the device`s definition as a Router. Also, I double checked how the power management of the device is handled and as far as I can tell it should never go into a sleepy state but stay idle (waiting for events) with rx_on_when_idle set TRUE.
At this point I am absolutely clueless why the BinaryValue cluster isnt read proberly…

Concerning a custom cluster:
Is there a step by step guide on what to add where (e.g. cluster description in general.xml, modifications in deconz_rest_plugin etc.) so it is proberly read in the deCONZ GUI?

Smanar · October 14, 2021, 3:30pm

But is can come from the hardware, the device don’t use battery at all ?
The difference can come how deconz ask for attribute, it can ask attributes 1 by 1 or many in the same request.

Is there a step by step guide on what to add where (e.g. cluster description in general.xml, modifications in deconz_rest_plugin etc.) so it is proberly read in the deCONZ GUI?

I m not sure to understand, but here you have an exemple for a modification to make deconz able to use a custom cluster, the SOIL_MOISTURE_CLUSTER_ID Add Initial support for DIYRuZ_Flower by Smanar · Pull Request #5209 · dresden-elektronik/deconz-rest-plugin · GitHub

frank · October 21, 2021, 10:46am

Hi Smanar, the mentioned github project has what Im looking for. Big Thanks!
I`ll have to setup a linux VM first, before going over to add all the necessary stuff for my device…

Back to the Binary Value Cluster problem:
My device is always turned on by hanging on an usb cable. When I was sniffing the traffic during a general read of all the cluster`s attributes, a big pile of read attribute (requests) were sent to a device ID which doesnt exist in the network.
Here I marked this block:

After the block is done, for the first three attributes read attribute requests are generated and answered by my sensor device.
Could this be a problem?

frank · October 21, 2021, 10:47am

The zigbee network during all of this:
